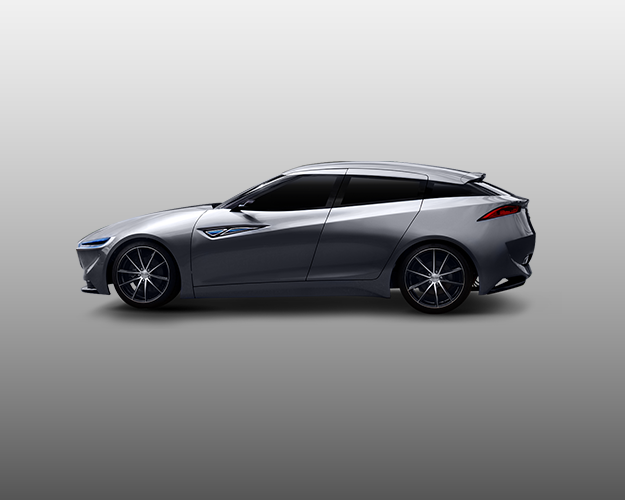

Deep Orange 3 Concept Vehicle
A Hybrid Mainstream Sports Car

Deep Orange 3

DO3

Deep Orange 3

ENGINEERED BY:

POWERED BY:

DESIGNED BY:

For the third edition of Deep Orange, the goal was to develop a blank sheet fully functional hybrid mainstream sports car concept targeted towards Generation Y (Gen Y) with Mazda North American Operations as the primary sponsor and Art Center College of Design as the styling partner.

Deep Orange 3 will encompass the engineering and design of a 2015 concept vehicle for generation Y. Showcasing the next level of KODO design, this concept vehicle will have distinct Mazda brand personalities in an exceptionally functional packaging combined with sustainable vehicle performance and responsive handling.

DEEP ORANGE 3: Mazda Concept

Deep Orange 3 render

BODY-IN-WHITE CONCEPT

It was chosen to explore the Industrial Origami® patented technology that allows using lighter gauge material folded into complex, innovative, high load-bearing structures, formed with simple, low cost fixtures, at the point of assembly. Developing the topology, geometry and functionality of the BiW required an intensive collaboration between design students and chassis, powertrain, NVH and occupant packaging engineering students while carefully balancing functional properties, design space, cost and weight. Once the properties and design targets were met, the complete sheet Folded Metal Technology (FMT) design was realized using aluminum and structural adhesives.

do3-powertrain

POWERTRAIN

A unique powertrain concept was derived based on extensive analyses of the Gen Y market. The data revealed that Gen Y, as an environmental conscious generation, is willing to invest in sustainable powertrain technologies and also has a significant interest in all-wheel-drive (AWD). Based on these findings, a through-the-road parallel hybrid powertrain concept with a manual transmission was conceptualized. The powertrain architecture comprises of a front-wheel-drive concept using a downsized turbocharge 4-cylinder internal combustion engine and a rear-wheel-drive concept using an electric machine. This configuration allows for regenerative braking, all-wheel-drive and power boost functionality.

do3-seating

SEATING

The unique interior-seating concept was derived from extensive analyses of Generation Y market segment based on surveys completed by owners of new cars and light trucks in the United States. The survey data clearly indicated that a significant portion of Gen Y would prefer a vehicle with 5 or more seating positions. The 6-seater interior concept was conceptualized to accommodate four full-sized 95th percentile male occupants and two 50th percentile male occupants in the middle seats using a 2-row, 3+3 seating configuration.

FROM CONCEPT TO COMPLETION

As part of the graduate automotive engineering program at CU-ICAR, students are given the unique opportunity to create and build a concept vehicle. The project showcases advanced technologies and provides students an opportunity to work directly with automotive industry partners and experience all phases of the product development process.

Student studying vehicle diagram on monitor
DO3 MOLDING
DO3 ENGINEERING
do3 info system
do3 sound check
do3 exterior
do3-sema-show

DO3 Team

Automotive Engineering Students

Aarant Profile

Michael Arant

Chasis Team Member

Bharat profile

Bharat Bhanukumaran

Chasis Team Member

Lyderic profile

Lyderic Champetier

Visiting Intern Supporting Powertain Team

damico profile

Chris D'Amico

Project Manager

Ekandem Profile

Jashoua Ekandem

Supporting Role: In-Vehicle Infotainment

Frommann profile

Patrik Frommann

Powertrain Team Member

Hazare profile

Mandar Hazare

Supporting Role: Chassis Team Member

Joshi profile

Puskar Joshi

Powertrain Team Member

lamance Profile

Chris LaMance

BiW Team Member

lind profile

Daniel Lind

Project Management

Makkar profile

Bhavuk Makkar

Powertrain Manager

prathamesh profile

Prathamesh Marathe

BiW Manager

Naaman Profile

Fred Naaman

Exterior Styling

Patkar profile

Aniket Patkar

BiW Team Member

Shah profile

Harsh Shah

Powertrain Team Member

Tejas profile

Tejas Sonavane

Powertrain Team Member

Arees profile

Arees Uthayasurian

Interior Manager

Xi profile

Yubin Xi

Interior Team Manager

PARTNERS

The following organizations have provided generous support, in-kind contributions, and mentoring to achieve the objectives of Deep Orange 3.
